CAD
A Summary
I’ve worked with several CAD softwares on several projects both personal and otherwise. Here are select examples.

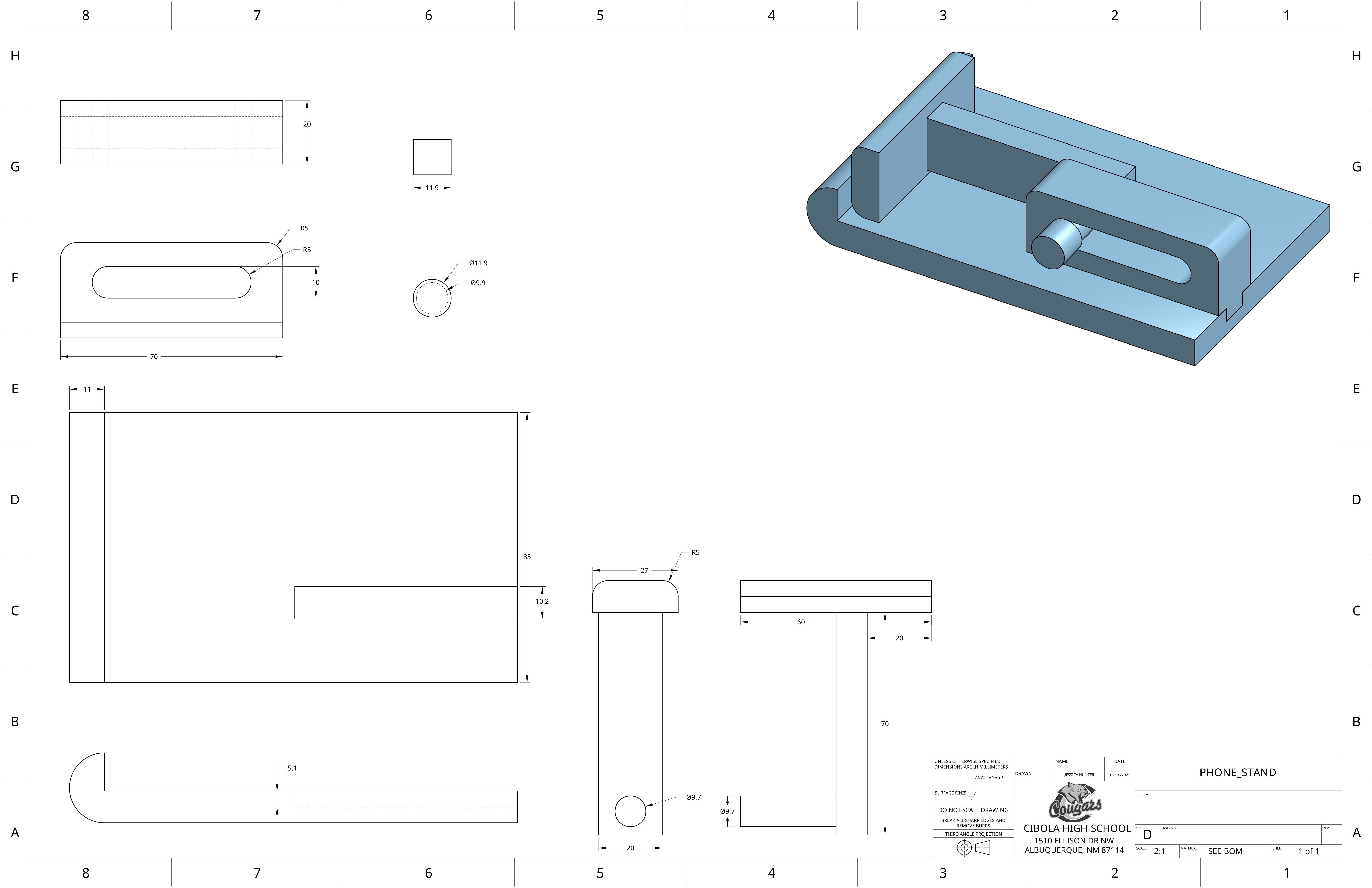

Phone Stand made using Onshape. Designed to hold most iPhones in both vertical and horizontal oritentation using minimal assembly.

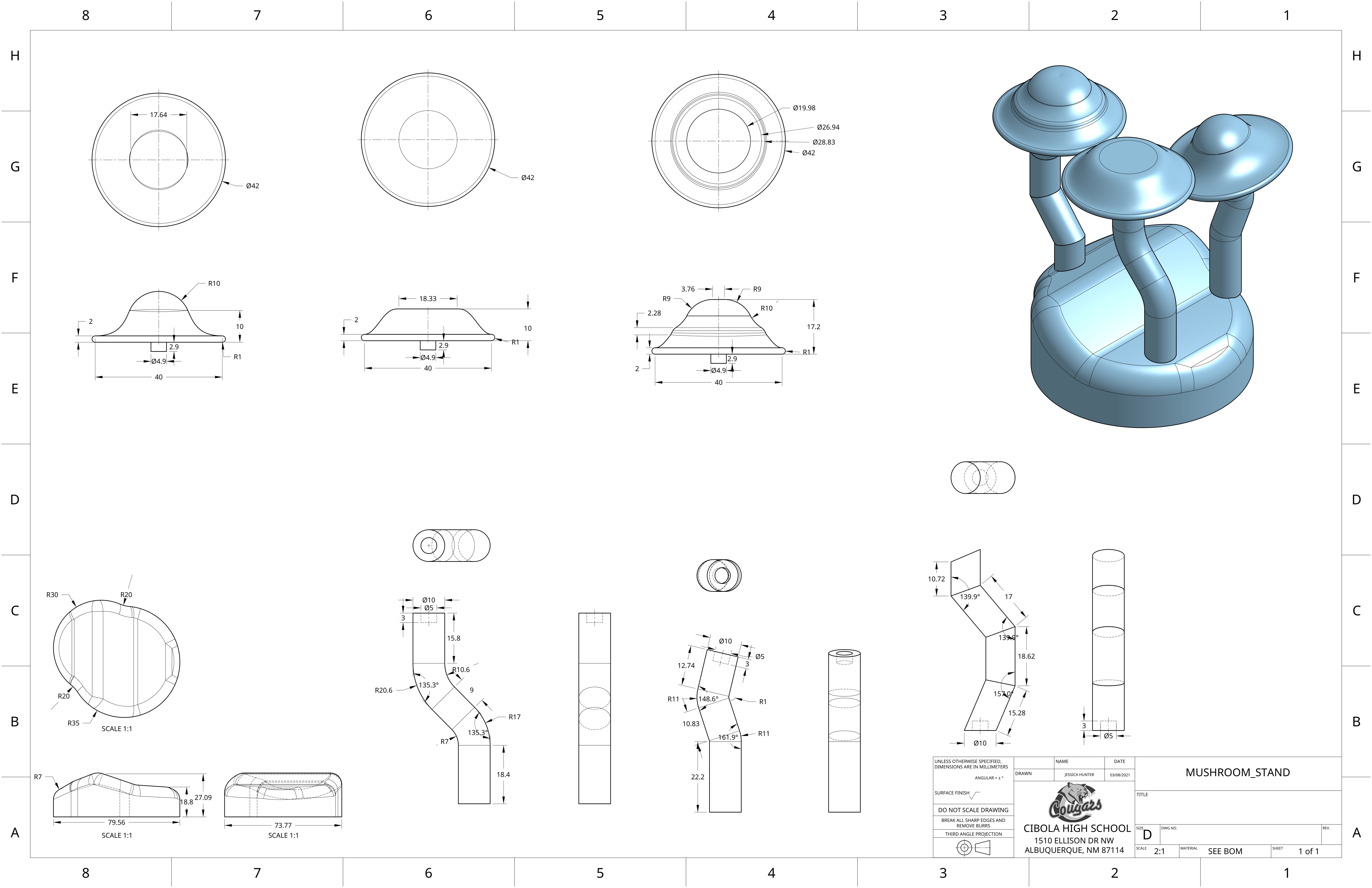

Mushroom Statue made using Onshape design to demonstrate orgainic shapes through mechanical 3d design tools.

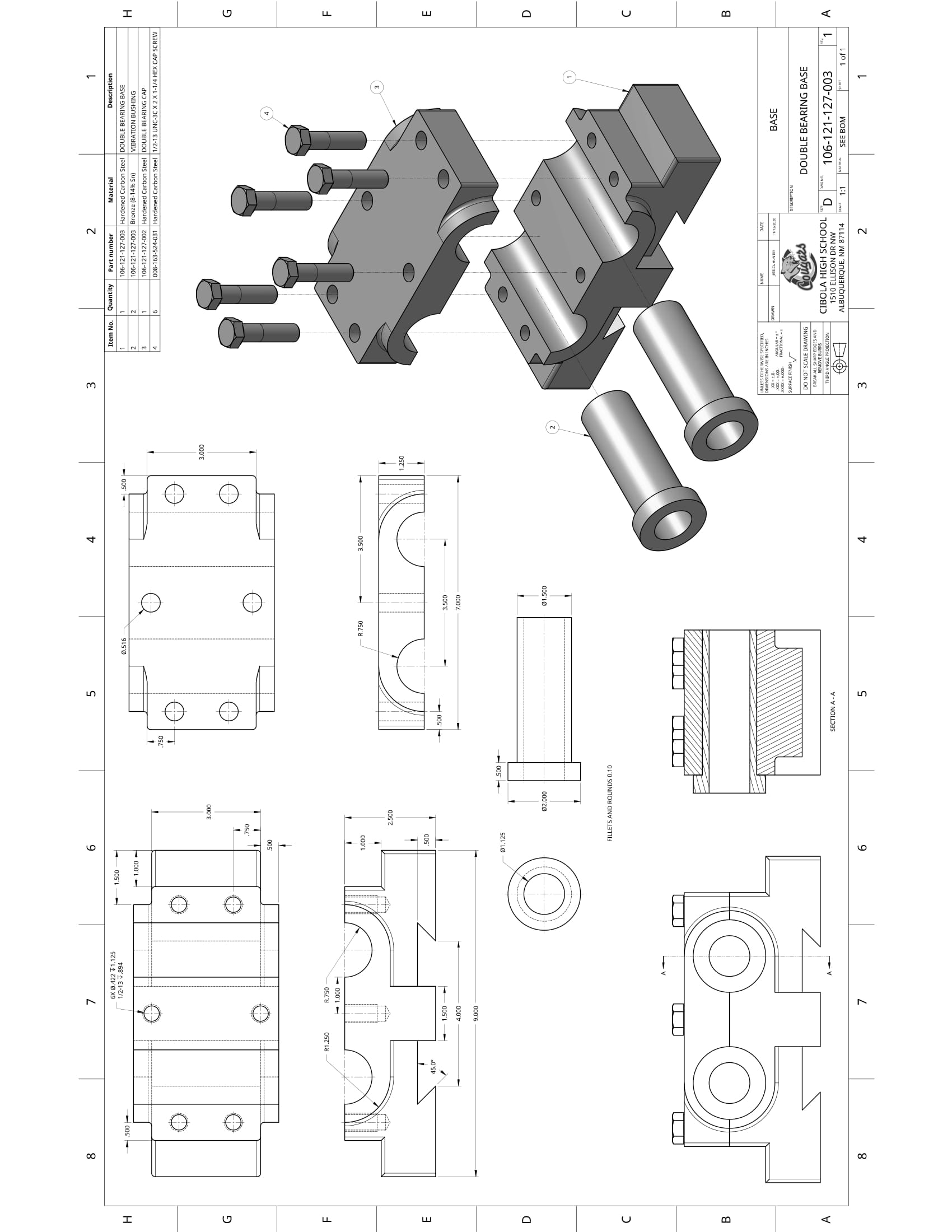

Double bearing made using onshape.

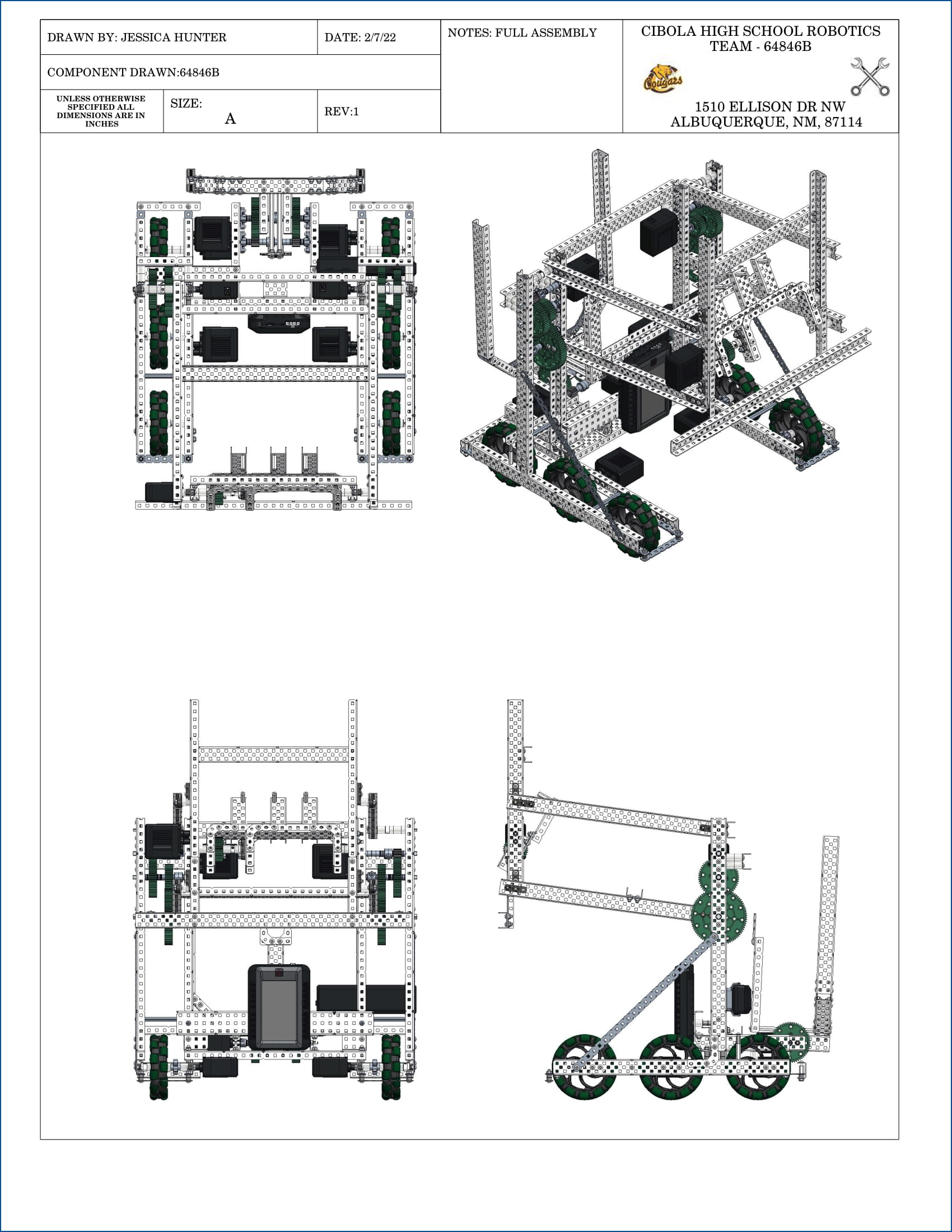

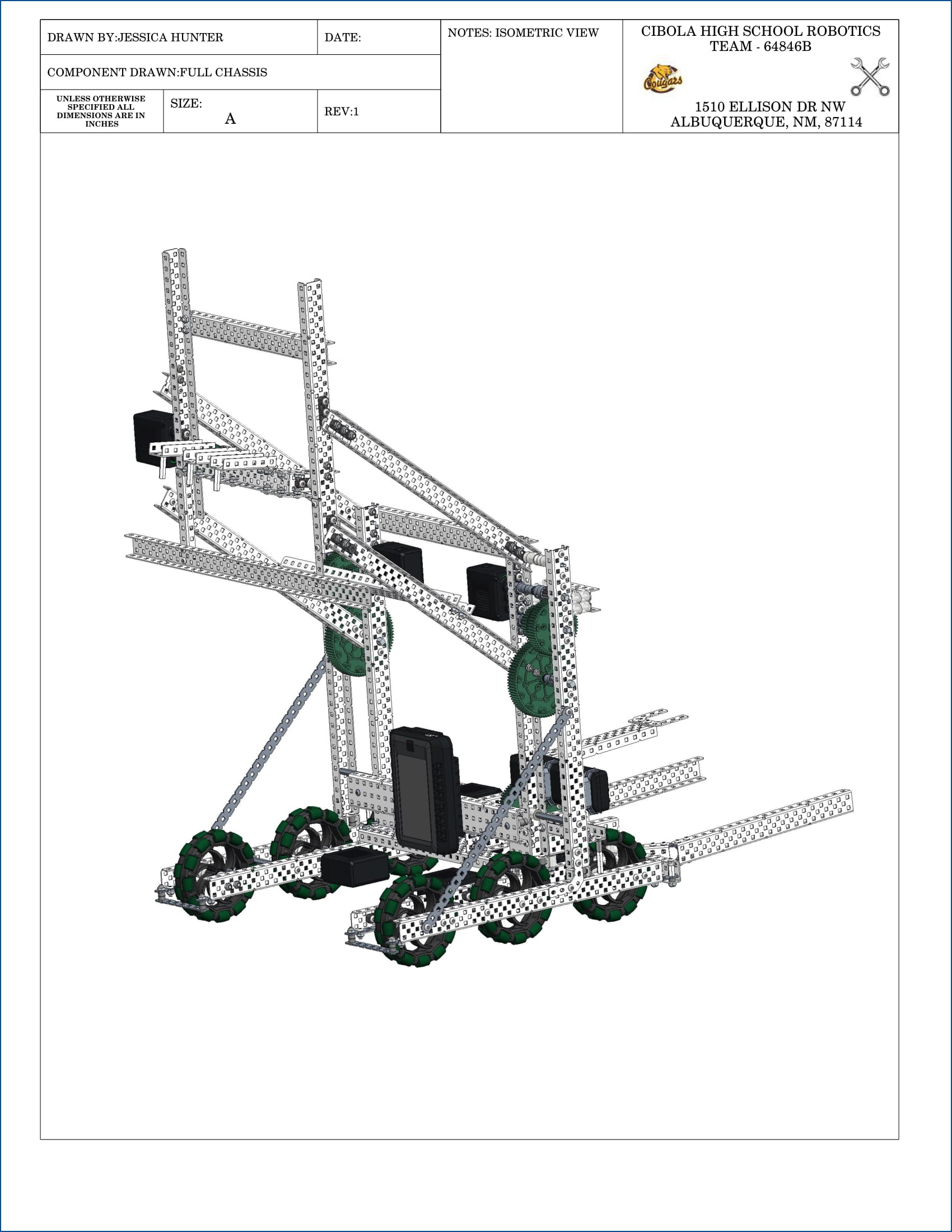

The following images were from my Vex team’s robot for the Tipping Point season which reflect a near 1-to-1 with the physical robot.
The following images were from my Vex team’s robot for the Change Up season. The CAD model reflects a 1-to-1 with the physical robot design.
